Defining the Space of the Commons
DESIGN 5
FALL 2022
OBJECTIVE: Design a public space such as a loggia. at Ft. Lauderdale site. The project must consider its position on the site in relationship to other community spaces including its prominence or its discreet nature; public usage including diverse places for seating, conversing, and inspiring the passersby to understand the space’s civic importance.
CONCEPT: The use of sunlight to illuminate each level at different times of day. The first level is the most enclosed and recieves the least sunlight. It is ideal for noon time where the sun is at its highest. The second level (ideal for sunset hours) has a rectangular opening on the west side where the sun will set. It allows the golden light of the setting sun into the space. Finally the terrace level, is ideal for night time. One can view the sky and surrounding buildings of Ft. Lauderdale during these hours.

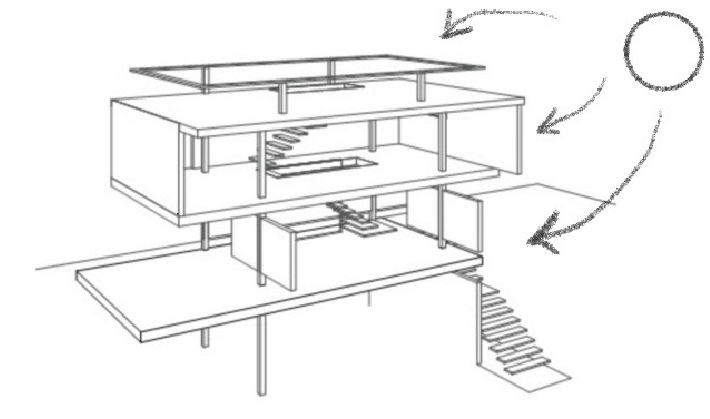

DAY LIGHT
Harvesting day light from the facade and open space

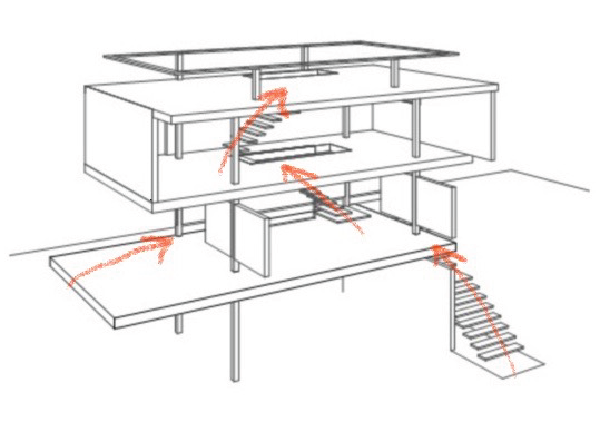

INTERNAL CIRCULATION
Human internal circulation

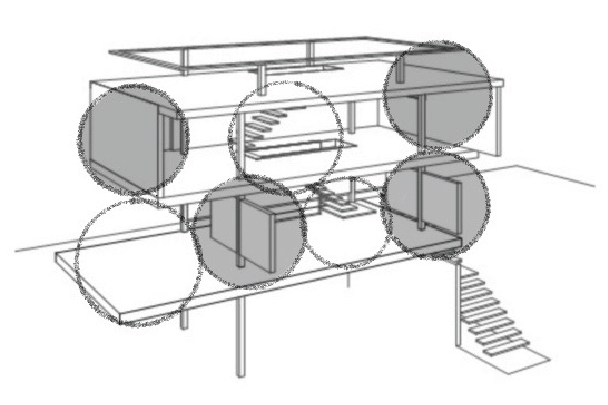

SOLID & VOID
Alternating solid and void areas

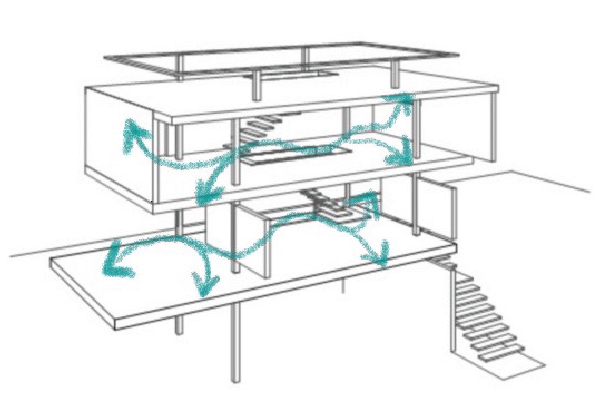

NATURAL CROSS VENTILATION
Openings act as ventilation points

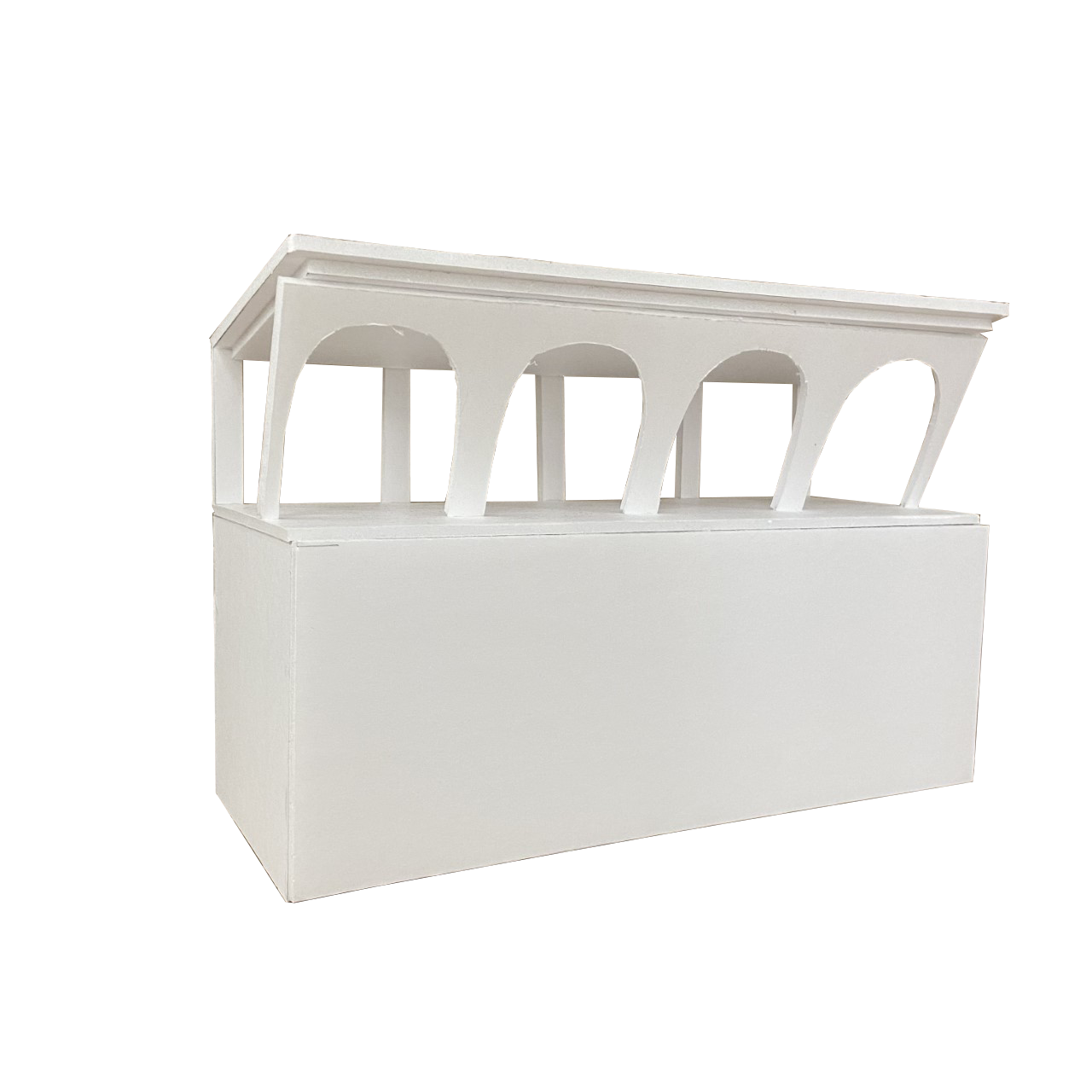

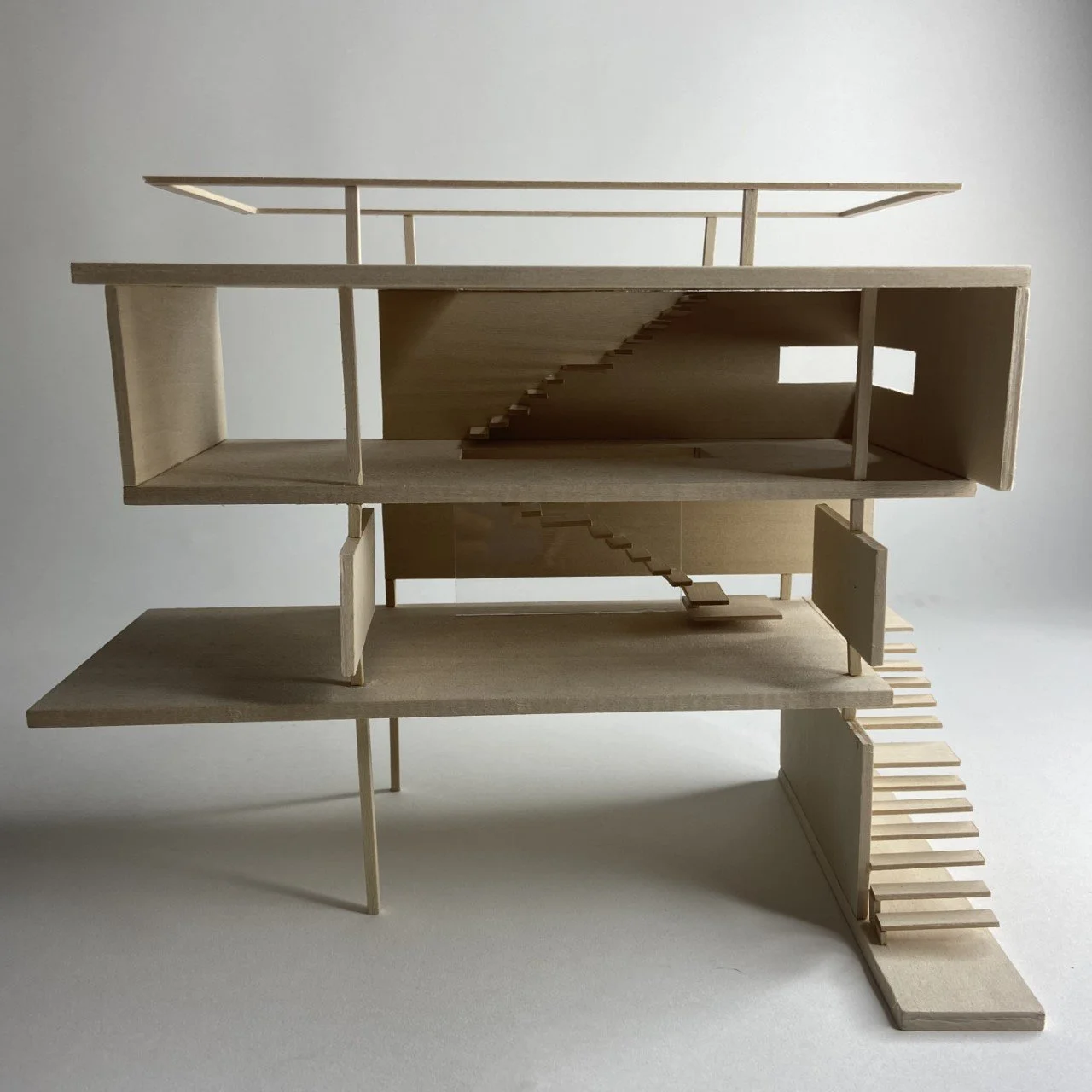

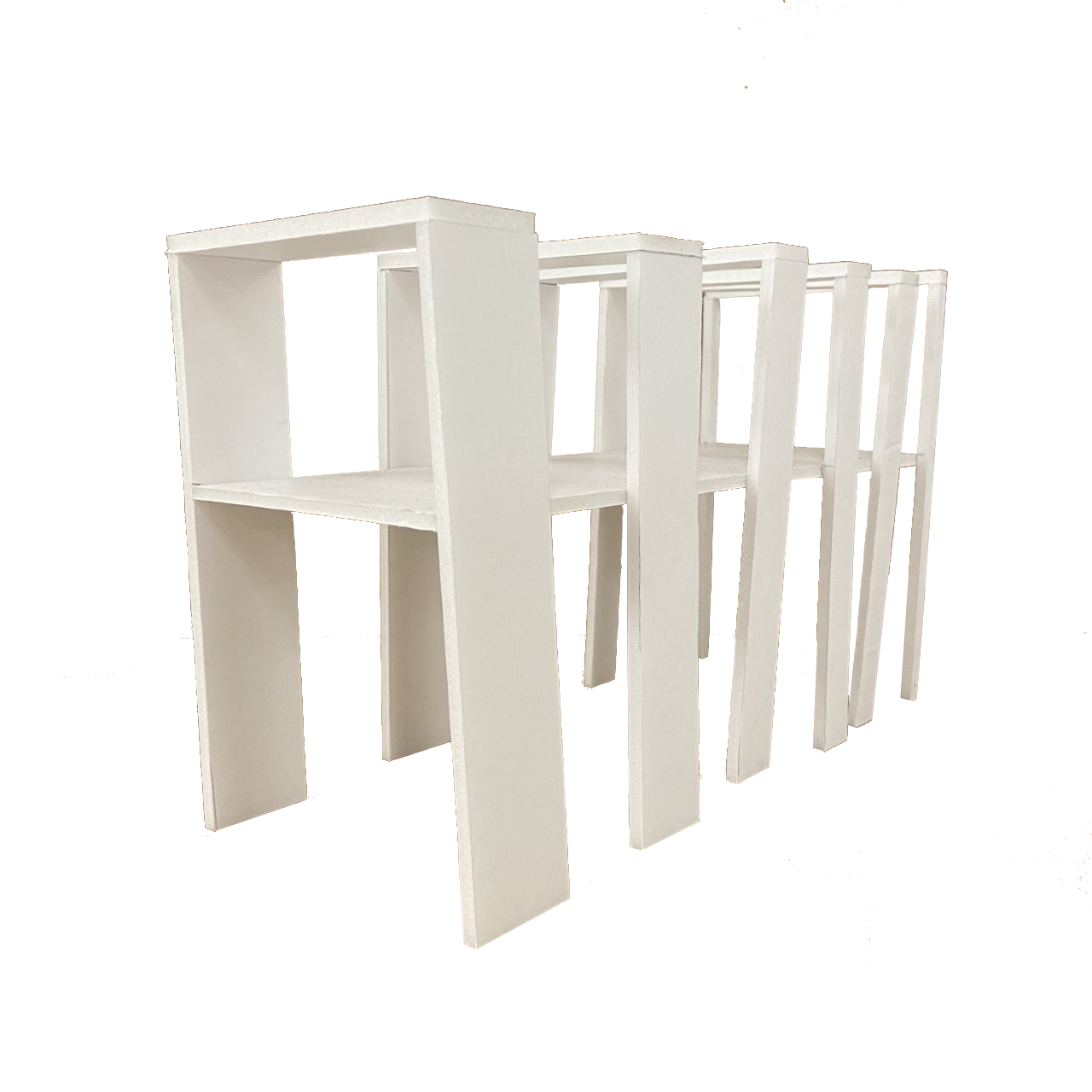

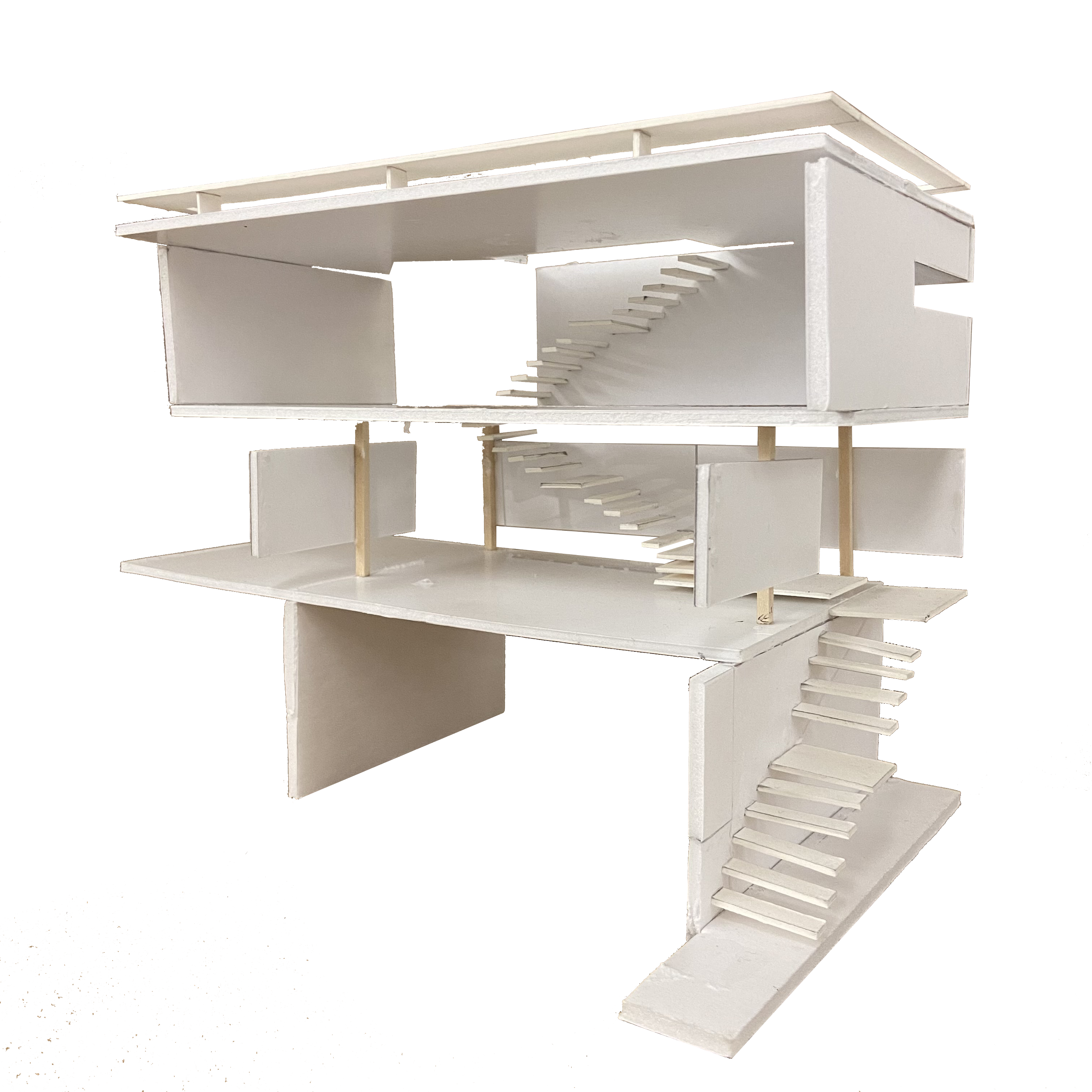

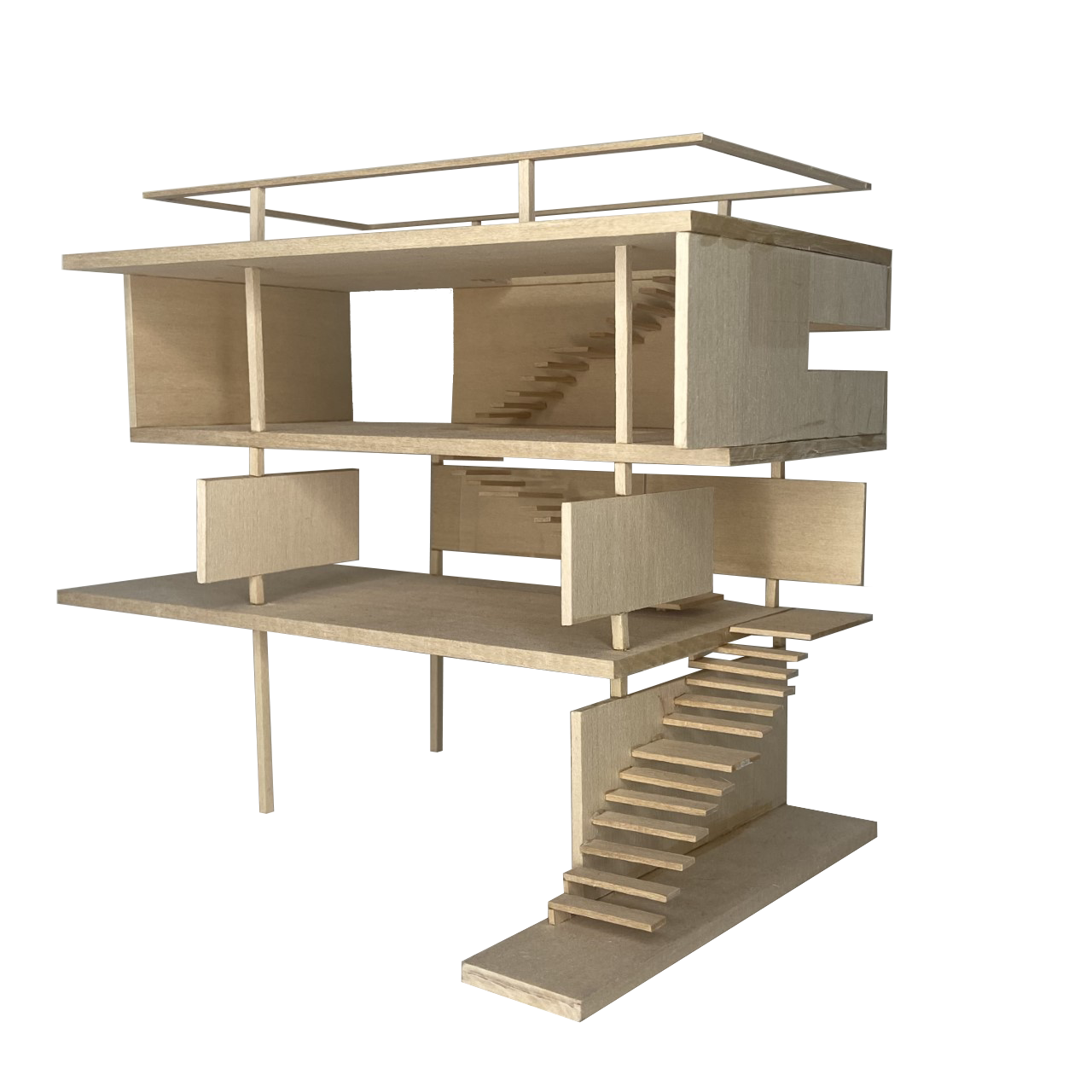

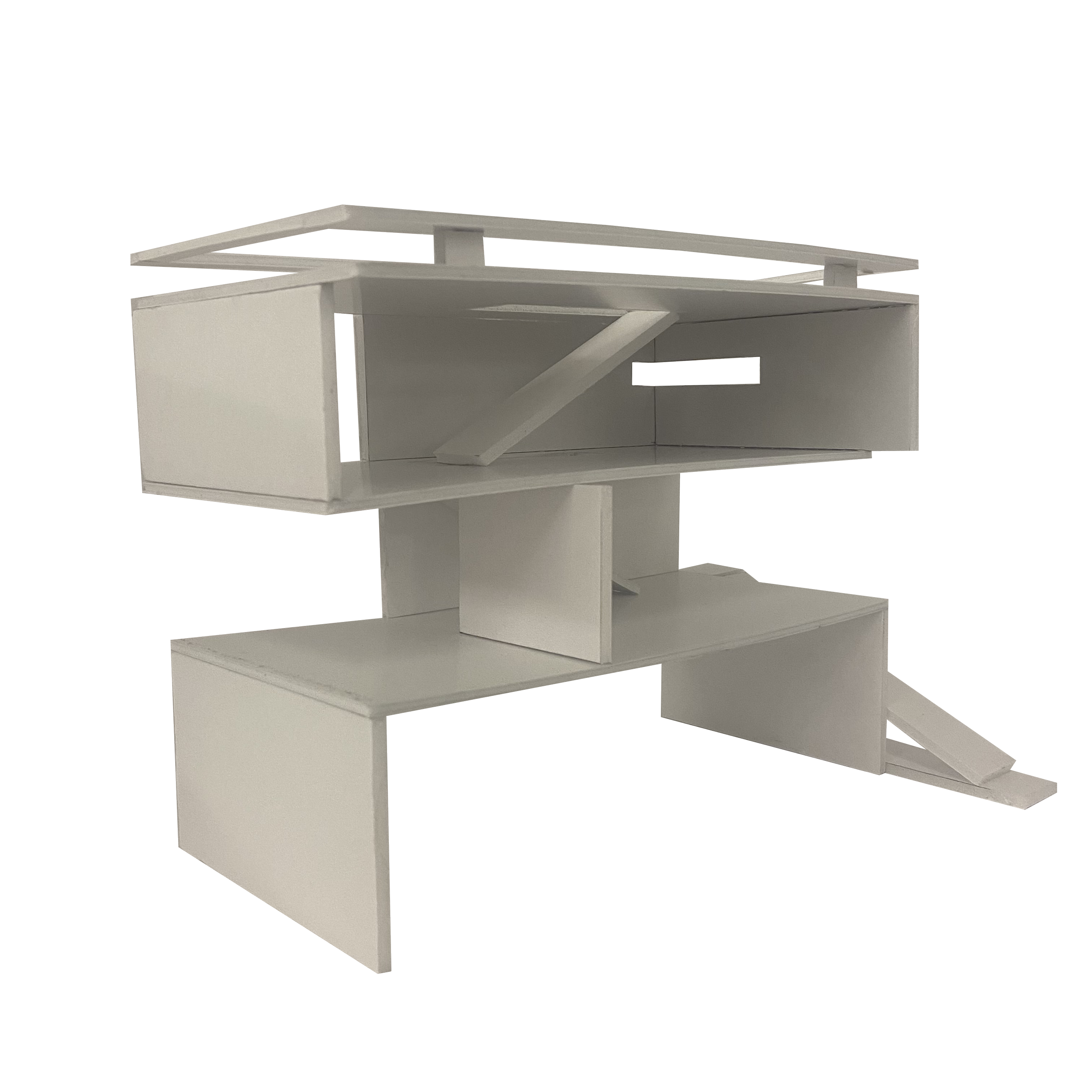

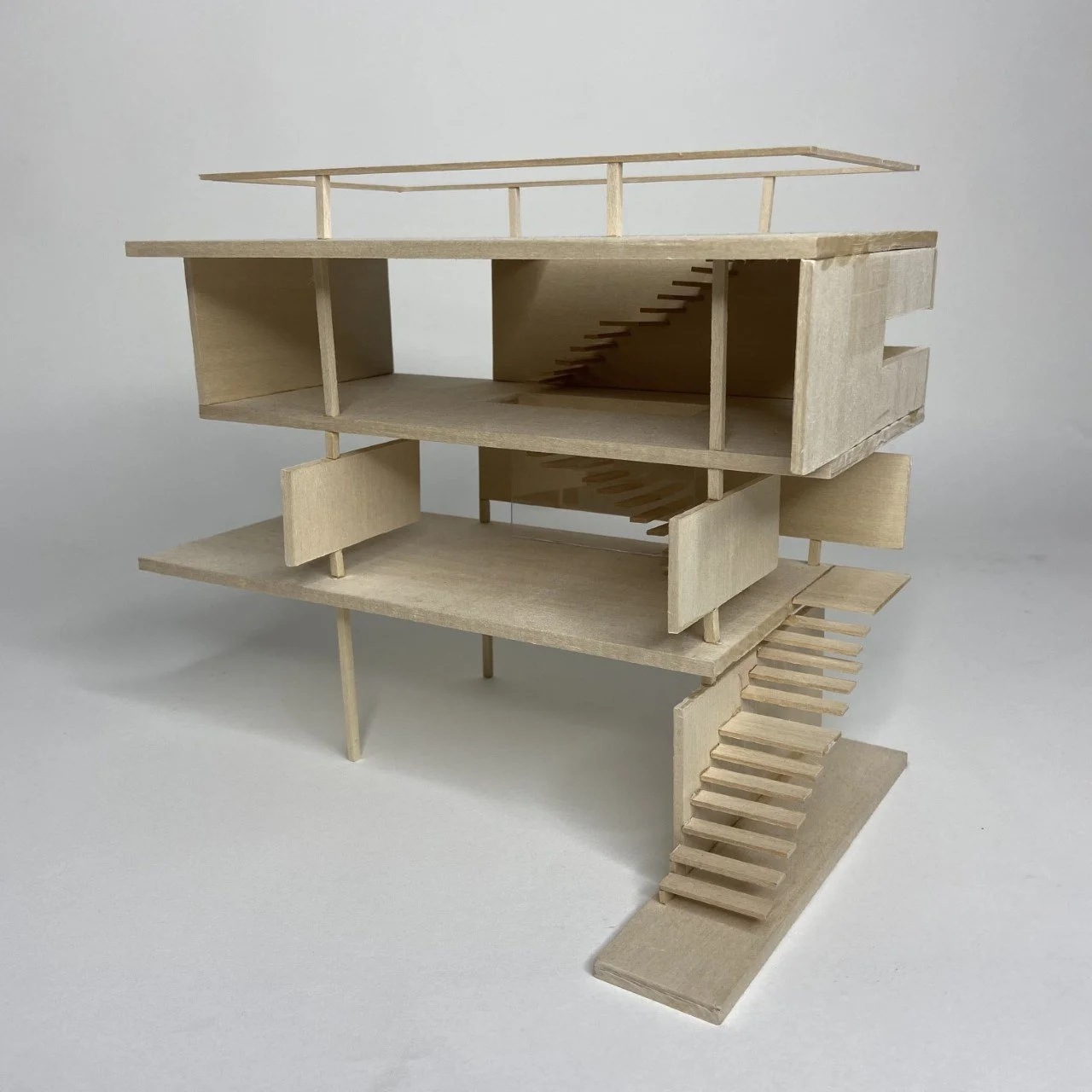

Process models in order

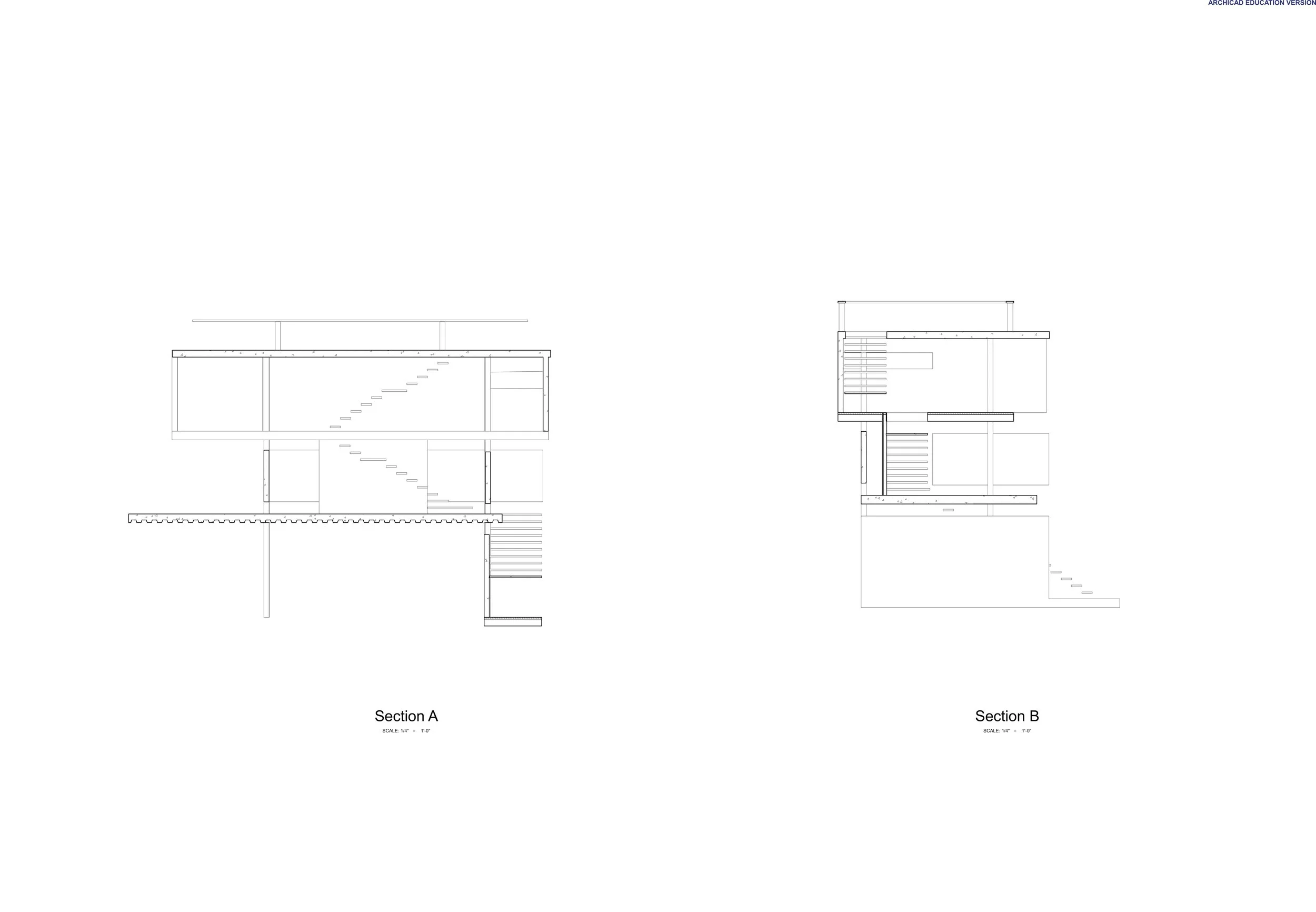

Ground Level
SCALE: 1/4” = 1’-0”
Level 2
SCALE: 1/4” = 1’-0”
Level 1
SCALE: 1/4” = 1’-0”
Roof Level
SCALE: 1/4” = 1’-0”
